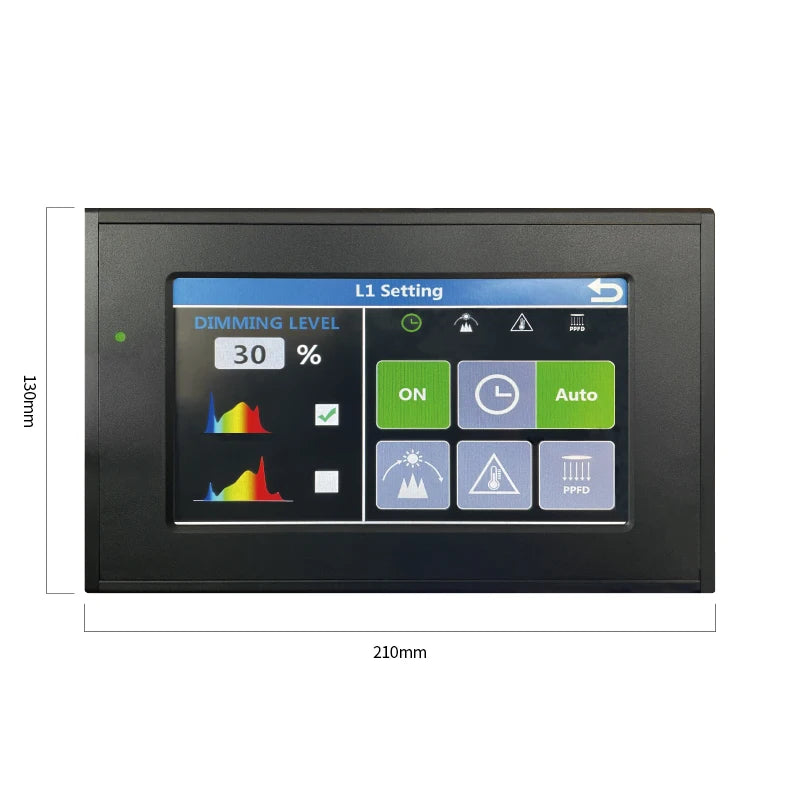

This smart grow light controller provides precise environmental management for indoor horticulture setups. Featuring 4-channel 0-10V analog dimming and RS485 communication, it allows seamless wireless and manual adjustment over your lighting schedules and output.
Integrated monitoring supports CO2, temperature, humidity, and PPFD sensors to optimize growing conditions. Designed to handle up to 1200W total load power across an AC 110-240V operating range, this controller delivers reliable performance for advanced cultivation environments.
Key Features
Product Type
Smart Grow Light Controller
Control Channels
4 Channel
Control Signal
0-10V Analog Dimming, RS485
Operating Voltage
AC 110-240V
Max Load Power
1200W
Output Current
8A per Channel
Operating Temperature
0-50 °C
Control Method
Wireless Smart Control, Manual Switch
Function
Environmental & Lighting Control
Certifications
ETL, CE
Estimated Shipping Weight
1.2 kg
Highlights

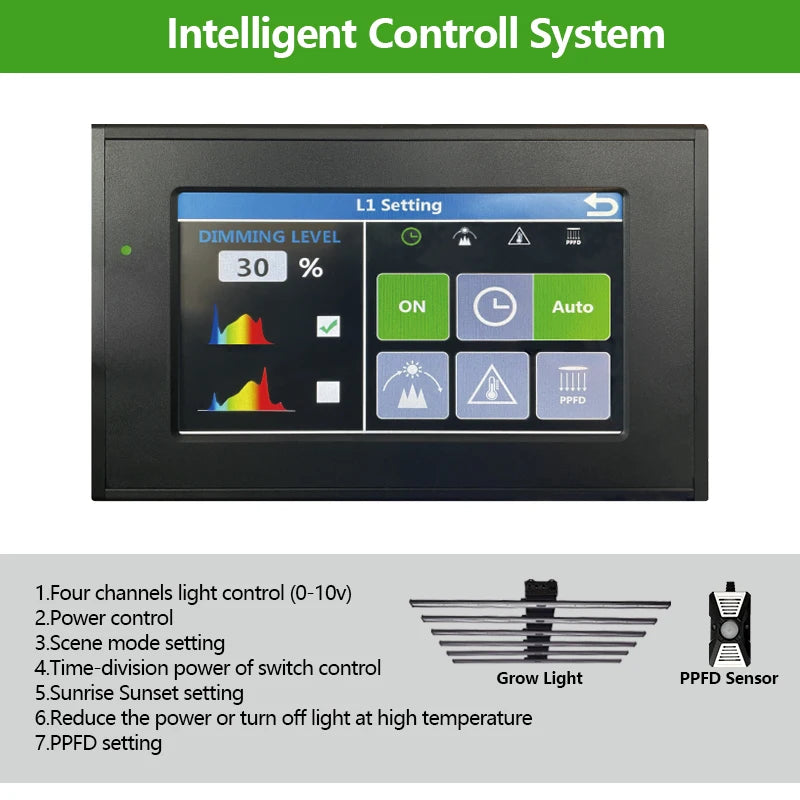

4-channel 0-10V analog dimming and RS485 communication

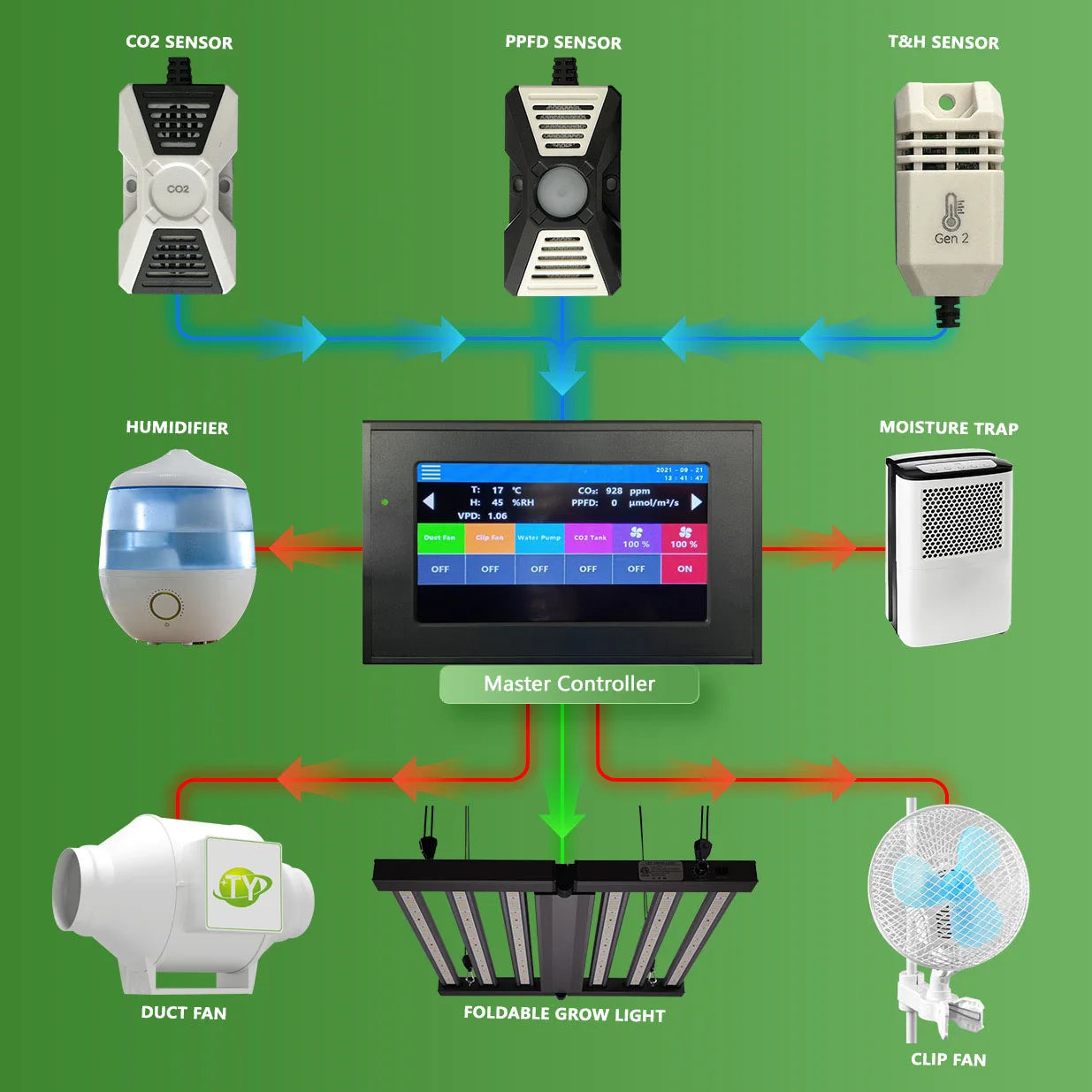

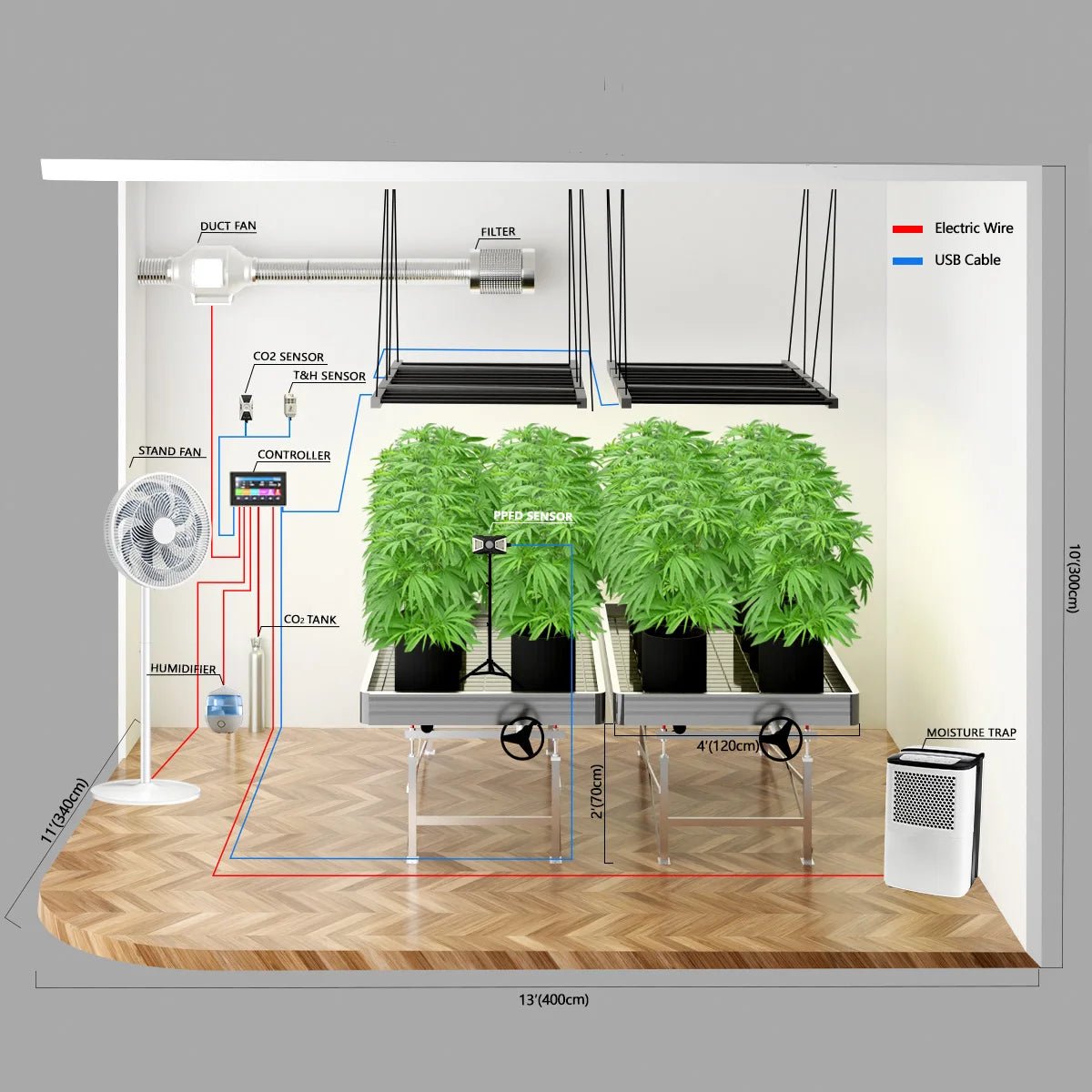

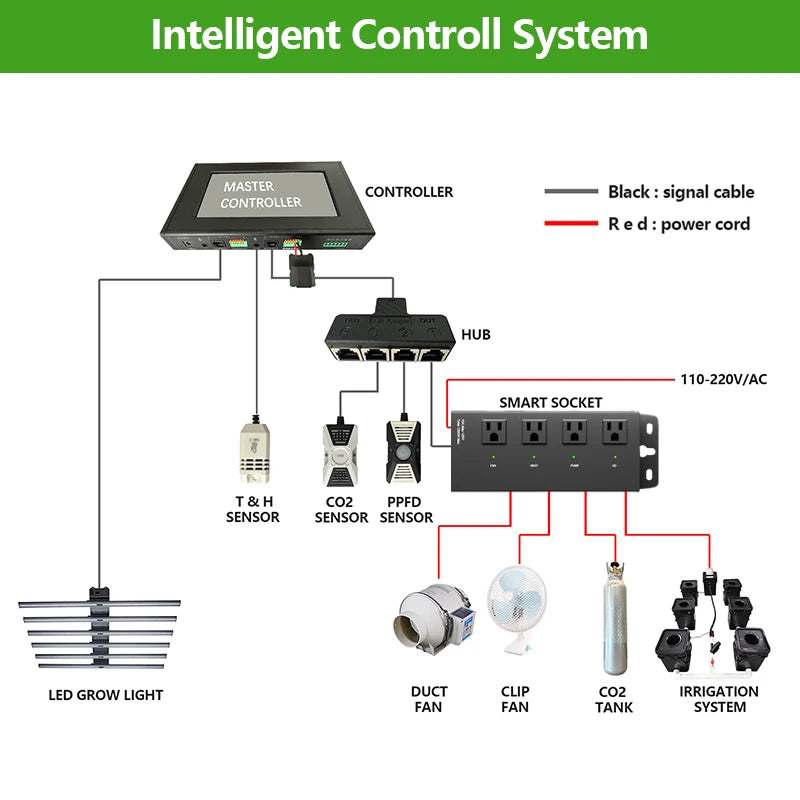

Integrated sensor management for CO2, temperature, humidity, and PPFD
Supports up to 1200W maximum load power with 8A per channel
Wide AC 110-240V operating voltage compatibility
Dual wireless and manual switch operation modes
Compatibility
Compatible with standard 0-10V dimmable LED grow lights and fixtures operating within AC 110-240V electrical systems.
Frequently asked questions
What dimming protocol does this controller use?
It utilizes a 0-10V analog dimming signal and RS485 control across 4 independent channels.
What is the maximum power capacity supported?
The controller supports a maximum load power of up to 1200W with an output current of 8A per channel.
What operating voltage range is compatible with this unit?
The controller operates on standard AC 110-240V power systems.
What is the recommended operating temperature range?
The controller is rated to operate safely within a temperature range of 0 °C to 50 °C.
